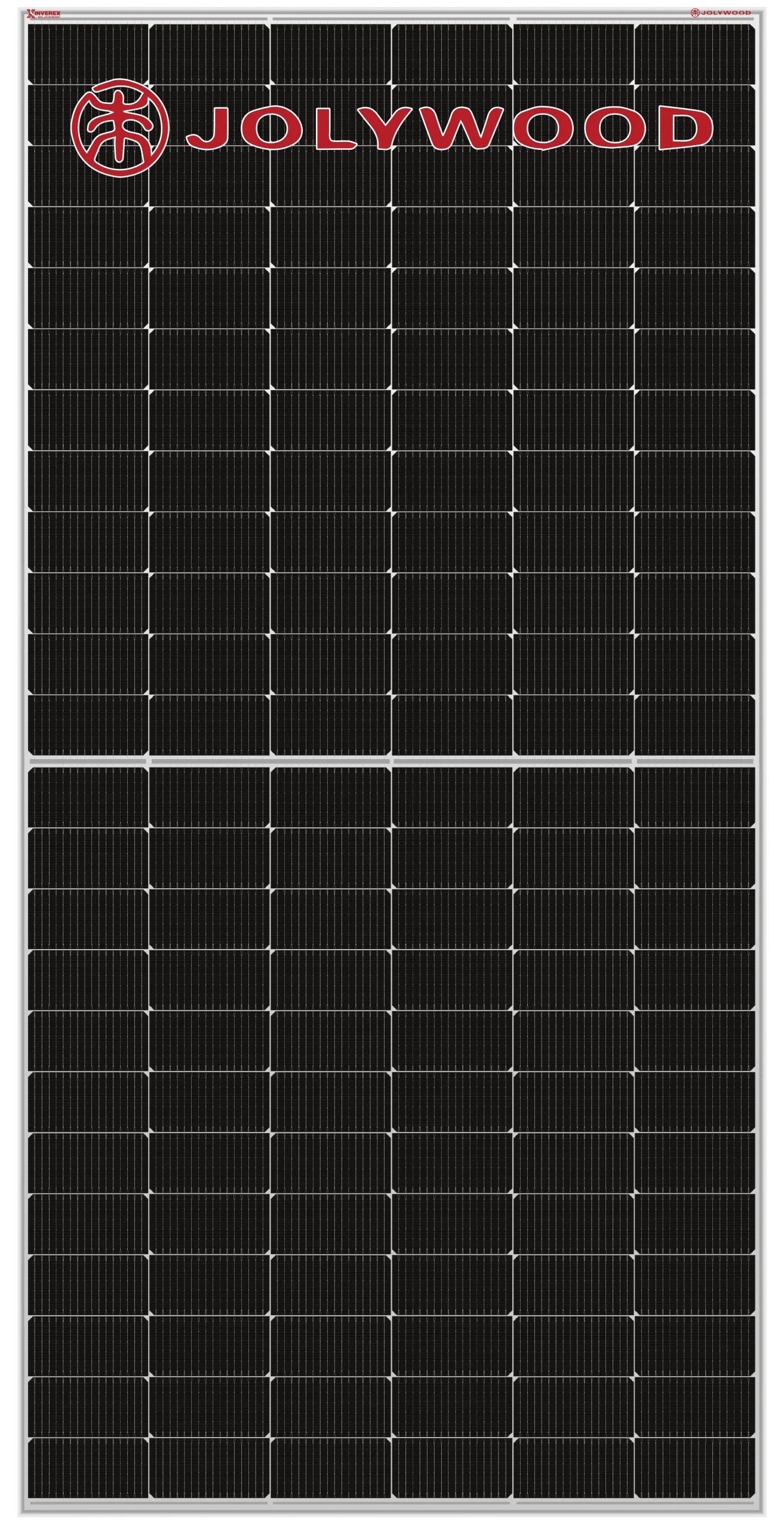

Jolywood Panel Single Glass 620W Warrior

Products Details

• Maximum Power Output: 620W
• Maximum Module Efficiency: 23.0%
• Power Output Tolerance: 0~+3%
• N-Type Monofacial Single-Glass Steel Frame Windproof Module
• J-TOPCon New Technology
• Higher Energy Yield
• High Reliability
• Lower Carbon Emissions
• Snowstorm Resistance
• Hurricane Resistance
• Hail Resistance
• Burst Resistance
• Lower Temperature Coefficient
• Lower Operating Temperature
• Lower Hot Spot Temperature
• Backbone Steel Frame: More than 2X stronger than traditional aluminum frames
• Wind Tunnel Test Passed: 60m/s Wind Tunnel Test

Specifications

• Number of Cells: 132 pcs
• Module Dimension: 2382mm × 1134mm × 29mm
• Weight: 28.2kg
• Front Glass: 2.8mm Tempered Glass
• Frame: Aluminum-Magnesium-Zinc Coated Steel
• Maximum System Voltage: 1500V IEC
• Maximum Series Fuse Rating: 35A
• Junction Box: IP68, 3 Diodes
• Operating Temperature: -40°C to +85°C

Delivery & Returns

• Standard Delivery 4-5 days.
• 12 Years Product Material & Workmanship Warranty
• 30 Years Linear Performance Warranty
